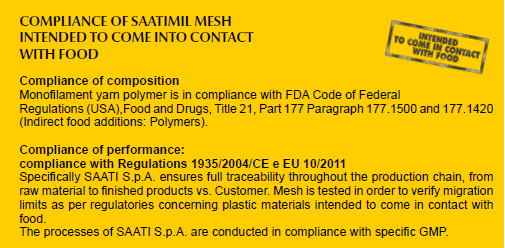

SaatiMil is SAATI's dedicated line to the flour milling industry, which includes an extensive selection of fabric types that are manufactured in accordance with ISO 9001:2000 and in compliance with FDA code of Federal Regulatios, as well as with Regulations CE 1935/2004 and EU 10/2011.

SAATIMIL FABRICS SELECTION

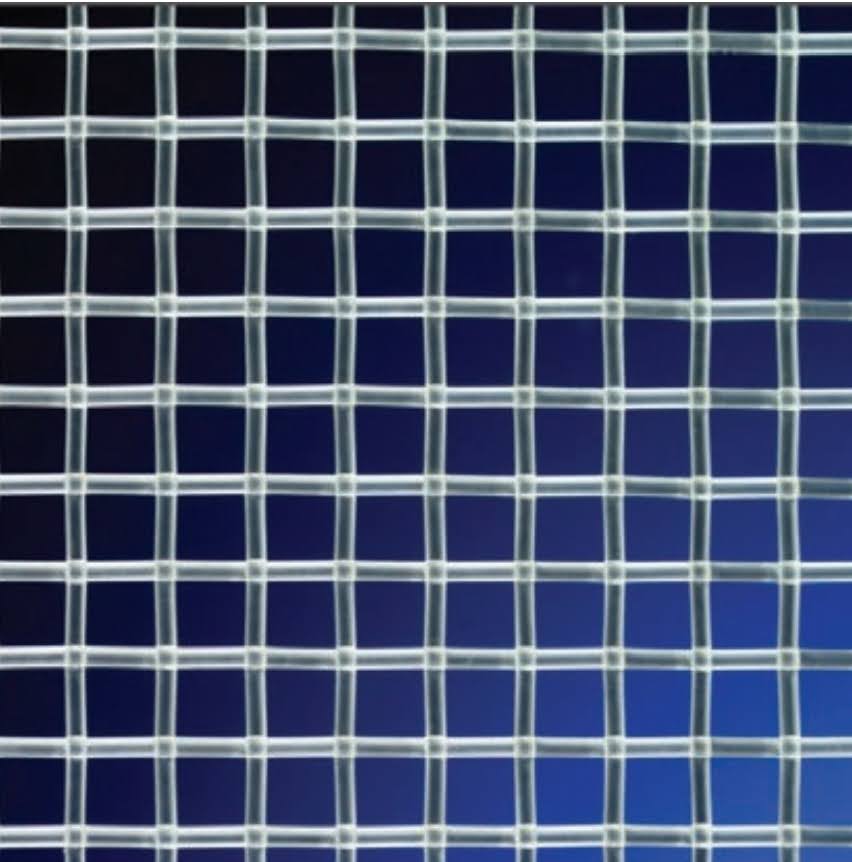

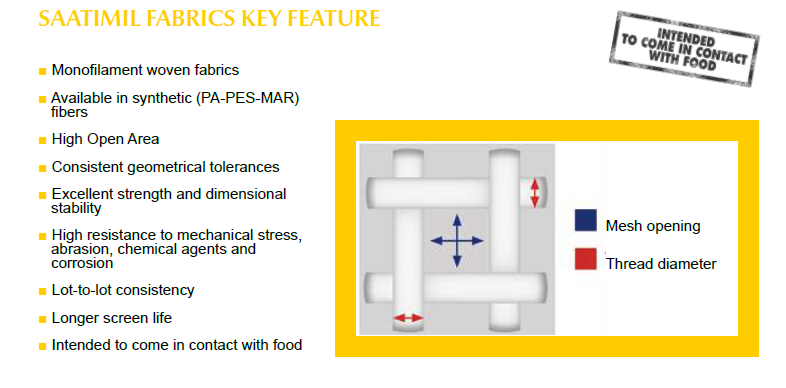

SAATIMIL fabric are available in a variety of fiber size for given opening size.

A large fiber improves screen life , but decreases screen flow capacity

A small fiber willl provide greater screening capacity but will wear out faster.

SAATIMIL XXX grades have a large fiber size and are used for hard grades of wheat and durum or other abrasive grains.	SAATIMIL GG or Gritz Gauze grades are woven with coarser opening sizes with a smaller fiber to provide a higher screening capacity.
SAATIMIL HT are high capacity screens in medium and finer opening sizes. they have a higher tensile strength and better abrasive resistance than the Saatimil XX grades.They are ideal for newer type sifting frames, which have glued on screens requiring high tensile stretching.	SAATIMIL XX fabric are woven with two smaller diameter fiber adjacent to one another. This construction provide a rougher surface to screen, which is beneficial when sieving soft wheat, bakery flour and other product that are difficult to sift.

SAATIMIL STS

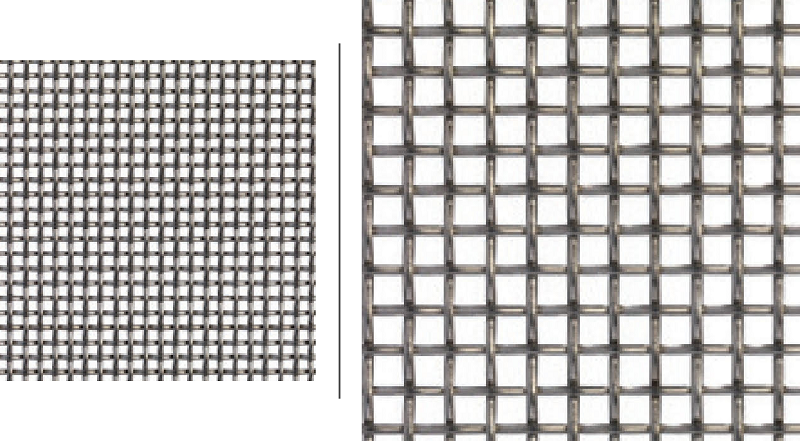

SAATIMIL STS is a range of stainless steel woven meshes designed to sieve accurately abrasive materials including food, chemical product , stones and variety of powders.

started from 95 micron to 2240 micron.

 SAATIMILL STS KEY FUTURES :

• FDA approved
• Uniform pore size
• Consistent wire diameter
• Resistance to humidity
• Static loading
• Accurate sizing
• Consistent geometrial tolerances
• Longer sieveng operation life

DOWNLOAD SAATIMILL BROCHURE
